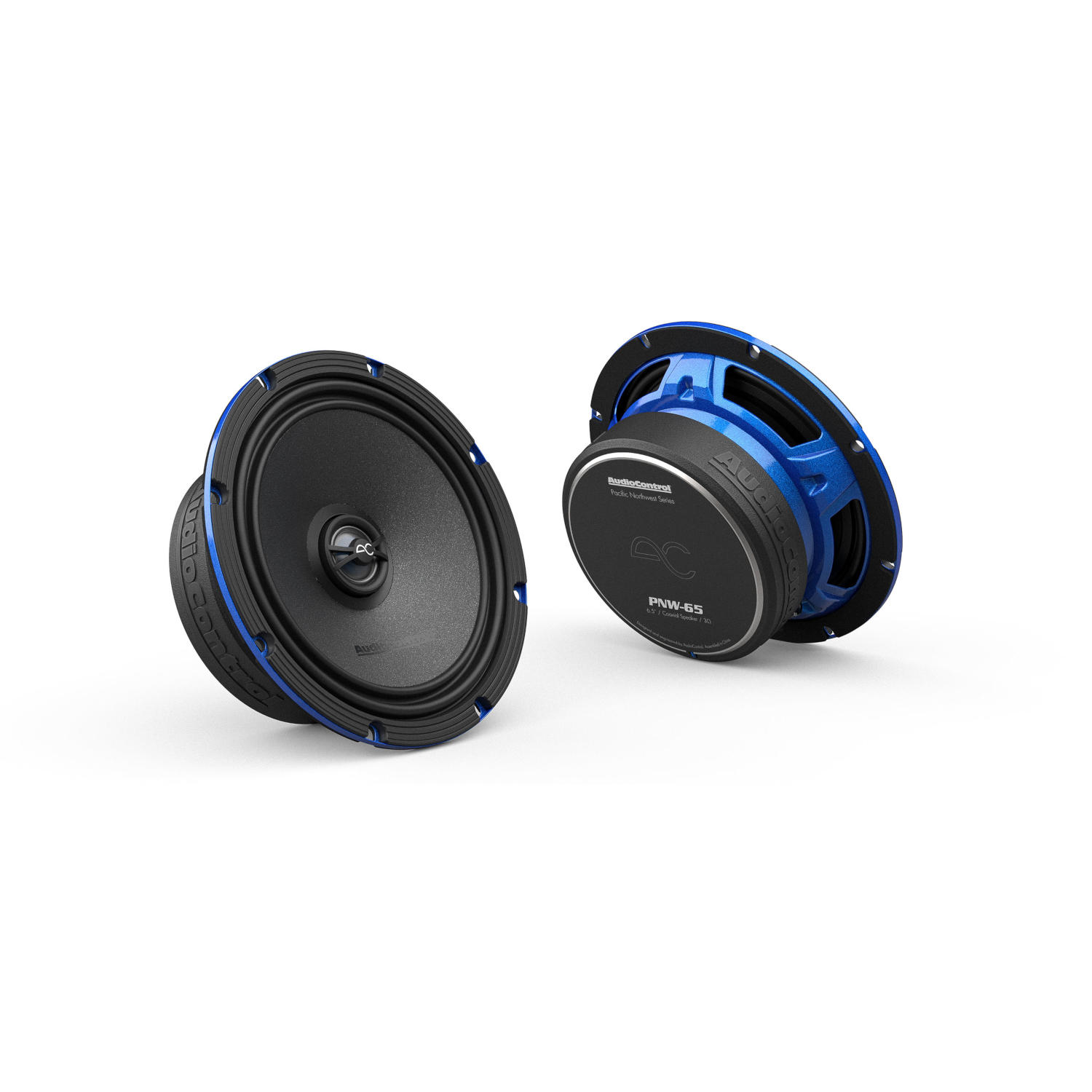

AudioControl PNW-65
299,00 €
FEATURES
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimized sound reproduction
- Rear dampened hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
SPECIFICATIONS
- Size: 6.5 inch
- Two way
- Nominal Impredance: 3 ohm
- Sensitivity SPL: 88.94 db
- Nominal Power: 50-75-100 watt
- 2 Crossover Type Butterworth
- DC Resistance (Re): 2.3 ohms
- Filter Type: HP
- System Frequency (Fs) Response: 60-20k Hz
- XO Frequency: 5250 Hz
- Slope (Octave): -6 dB
- Tweeter Voice Coil Diameter: 20 mm
- Midrange Voice Coil Diameter: 35 mm
