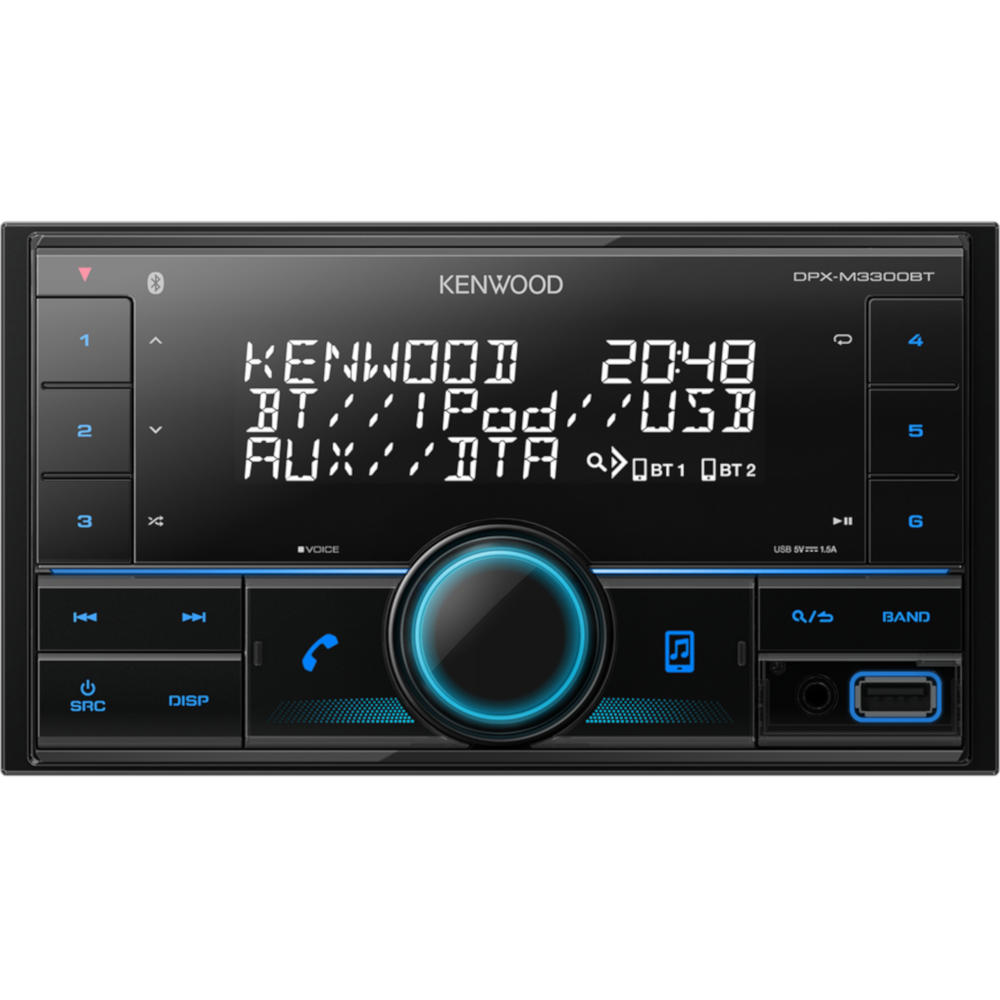

Kenwood DPX-M3300BT

General Features

• DIN Size: 2 DIN
• Key Illumination: Variable LED
• Rotary Encoder & Control Knob: Yes
• Accent key: Handsfree & Voice Assistant
• Dual Accent Key : Handsfree & Voice Assistant
• Back-up Memory: Menu Settings
• Attenuator with Smooth Volume Return: Yes
• Touch Sensor Tone: Yes
• Digital Clock (24H): Yes
• All-off Select (20/40/60 minutes): Yes
• Built-in Connector: Mitsumi, 16 pin
• Bluetooth unit built-in: Yes
• Firmware upgreadable: Yes
• Mechless receiver: Yes

Display Features

• Display Layout: 3 line text + custom icons
• Vertical Aligment Liquid Crystal Display: Yes
• Display Illumination: Variable by RGB LED
• Dimmer Control : Manual / Set by Timer
• Brightness control: 0 - 31 steps
• Demo Mode: Yes
• Menu text in selectable language: English(default) / Spanish / French / German / Russian
• TAG Language Display: English / Spanish / French / German / Russian / Greek

Cosmetics features

• Dress plate: Black Injection
• Preset key finish: Black Injection
• Escutcheon finish: Black Injection
• Volume & operation knob or wheel: Transparant Lighting
• Triangle Illumination: Red LED
• Key illumination: Variable by RGB LED
• Illuminated front USB port: Variable by RGB LED
• Brightness Control (Key): 0 - 31 step
• Dimmer Control (Key): Manual / Set by Timer
• Variable color illumination: Yes
• Color Zone Concept: 3 zone colour control
• Chrome-finished accents: faceplate

Tuner Features

• Station Select: Manual / Preset
• FM Reception: Yes
• FM Stereo / Mono Selector: Yes
• AM (MW/LW) Reception: Yes
• Up/Down Seek/Scan: Yes
• Tuner Presets (FM/AM): 24 Presets (18FM / 6AM)
• Mixed preset memory (FM & AM): 6 presets
• Automatic Memory Entry (AME): Yes
• Tuner Preset Back-up Memory: Yes
• Radio Data System: Yes
• Radio Text Plus: Yes
• Traffic Information: Yes
• Local search: Yes
• AF Regional: Selectable: AF/AF Reg/OFF
• Auto TP search: Yes
• Enhanced Other Networks Function (EON): Yes
• Program Type Function (PTY): Yes

Playable Audio File

• AAC (*.m4a) files are playable: USB
• AAC (*.aac) files are playable: USB
• MP3 files are playable: USB
• WMA (.wma) files are playable: USB
• WAV (.wav) files are playable: USB
• FLAC files are playable: USB

USB Features

• USB terminal: Yes, Front side with dust cover
• USB Type: 2.0 High speed
• Drive Change: Yes
• MP3, WMA, AAC, WAV, FLAC playback: Yes
• Repeat/Scan/Random search: Yes
• Repeat / Random Play: Yes
• Direct search: Yes
• Resume play: Yes
• Time code display: Yes
• 1A Charge Capability for Smartphone: Yes
• 1,5A Smartphone Quick Charge: Yes

iPod Features

• Made for iPod & iPhone: Yes
• USB Direct Control (Audio, 1 wire, Lightning-connector): with optional cable KCA-iP103
• Music playback: Yes
• Alphabet search: Yes
• Skip search: Yes
• Related search: Yes
• Direct Search: Yes
• iPod EQ Mode: Yes
• Control by hand: Yes
• App & iPod control mode: Yes
• Spotify App Link: Yes
• Reverse browsing: Yes
• Battery charge + power control: Yes
• Always update to latest Apple firmware

Audio Features

• Maximum Output Power: 50W x 4
• MOSFET Power IC: Yes
• Auxiliary Type: Mini-jack, front panel
• Pre-out: 2 RCA
• Pre-out Output Level: 2.5V
• Preout Rear / Subwoofer Switchable: Yes
• Subwoofer Reference Level Adj: Yes
• 2-Way X'over network: Yes
• 3-Way x'over (bi-amp connection): Yes
• Tone Control / Easy EQ: 13 band, 8 presets
• Balance/Fader/Loudness Control: Yes
• Bass Boost Circuit: Off/+1/+2/+3/+4/+5
• Att.(-20dB) with smooth Volume Return: Yes
• Equalizer built-in: Yes
• Graphic Equalizer + Preset: 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in: Yes
• Digital Time Aligment (DTA): Yes
• Low- & High-pass Filter: Yes
• Speaker Size Control: Yes, Off/10cm/13cm/16cm/6x9inch
• Kenwood Sound Reconstruction: Yes
• Sound Reconstruction: Yes
• Space Enhancer : Yes
• Realizer: Yes
• Stage EQ: Yes
• Drive EQ: Yes

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP: 5 phones
• Hands Free Profile with High Sound Quality: HFP V1.7.1
• Max num. of regist. phones for HFP: 5 phones
• 2 phones full time connection: Yes
• Audio Streaming (A2DP): Yes
• High Quality Audio Streaming: SBC/AAC
• Max num. of regist. units for A2DP: 5 units
• Serial Port Profile (SPP): Yes
• Phonebook Access Profile (PBAP): Yes
• Audio/Video Remote Control Profile (AVRCP): Yes, V1.6.1
• Easy pairing function: Yes
• iPhone & Android automatic pairing via USB: Yes
• Voice Dialing / Siri Eyes Free: Yes
• KENWOOD Remote App Ready
• KENWOOD Music Mix Support: Yes
• Catchphone / Call Waiting: Yes
• Private mode: Yes
• Alphabet Search (Phonebook): Yes
• Noise Canceller: Yes
• Echo Canceller: Yes
• Phone device status display: Yes
• Audio device status display: Yes
• Signal strength display: Yes
• Remaining battery display: Yes
• Bluetooth Paring Indicator: Yes
• High-quality noise canceling microphone: Rear Wired
• Bluetooth firmware upgradeable: Yes
• depends on phone model/make: & Kenwood unit

Connectivity

• Front USB & AUX Input: Yes
• OEM Wired Remote Control ready: Yes
• DC-Cord: Mitsumi to ISO
• Power Control (P.CON) wire: Yes
• Amplifier pre-out: RCA: Front/Rear/Subwoofer
• FM Antenna Input: JASO connector
• External microphone input: 3,5mm mini-jack

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step): Yes
• FM Usable Sensitivity: 0.71μV/75ohm (S/N 30dBf)
• FM Quieting Sensitivity: 2μV/75ohm (S/N 46dBf)
• FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono): 64dB
• FM Stereo Separation (1kHz): 40dB
• MW range: 531kHz - 1611kHz (9kHz step): Yes
• MW Usable Sensitivity: 28.2μV
• LW range: 153kHz - 279kHz (9kHz step): Yes
• LW Usable Sensitivity: 50μV

Codec Specs

• MP3 Format: MPEG 1/2 Audio Layer 3-Files
• WMA Format: in accordance with Windows Media Audio
• AAC Format: AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files
• WAV Format: RIFF waveform Audio Format (only for LinearPCM)
• FLAC Format: FLAC files (up to 96kHz/24bit)

USB Specifications

• USB Version compatibility: USB 2.0 High Speed
• File System: FAT 32/16/12
• Maximum Supply current: 1500mA
• D/A Converter: 24bit
• MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode: Compliant with Windows Media Audio
• AAC Decode: m4a" & "aac" file encoded by AAC-LC format
• WAV Decode: Linear - PCM Files
• flac Decode: FLAC files up to 96kHz/24bit

Audio Specifications

• Maximum Power: 50W x 4
• Output Power (DIN45324,+B=14.4v): 22W x 4
• Preout Level: 2500mV / 10kOhm,
• Preout Impedance: ≤ 600Ohm
• Speaker Impedance: 4Ohm ~ 8Ohm
• AUX Frequency Response: 20Hz ~ 20kHz (±1dB)
• AUX Maximum Input Voltage: 1000mV
• AUX Input Impedance: 30kOhm

DSP Specifications

• Frequency band - Front: 62.5Hz ~ 16kHz
• Equalizer Gain: –9db ~ +9db
• Q Control: 0.25/ 0.50/ 1.00/ 2.00
• High Pass Filter frequency: Through/50 ~ 220 (Hz)
• High Pass Filter Slope: -12/-18/-24 dB/Oct
• Low Pass Filter frequency: 50 ~ 120(Hz)/Through
• Low Pass Filter Slope: -12/-18/-24 dB/Oct
• Time Alignment: 0 — 610cm(2 cm step)

Car type control

• OFF
• COMPACT
• Full SIZE CAR
• WAGON
• MINIVAN
• SUV
• MINIVAN LONG
• Equalizer Type: Graphic
• Frequency band: 13 bands

Bluetooth specifications

• Technology: Bluetooth V4.2
• Frequency: 2.402 - 2.48 GHz
• Output power: +4dBm(max), 0dBm (AVE) power class 2
• Maximum range: Line of sight approx. 10 meter
• Handsfree profile (HFP): Yes
• Serial port profile (SPP): Yes
• Advanced audio distribution profile (A2DP): Yes
• Audio Codec: SBC/AAC
• Audio/Video remote control profile (AVRCP): Yes
• Phonebook access profile (PBAP): Yes

Accessories

• Release keys: 2 pieces
• Escutcheon: Yes
• Installation Sleeve: Yes
• DC cord (Mitsumi to ISO): 15 cm
• Handsfree Microphone: with 3 m cable

General Specifications

• Operating voltage: 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption: 10A
• Dark Current Consumption: Below 1mA
• Dimensions (WxHxD): 182 x 111 x 100mm
• Weight: 1000 gr.
• Operation Temperature Range: -10°C ~ 60°C
• Instruction Manuals: Multi-language quick Guide
