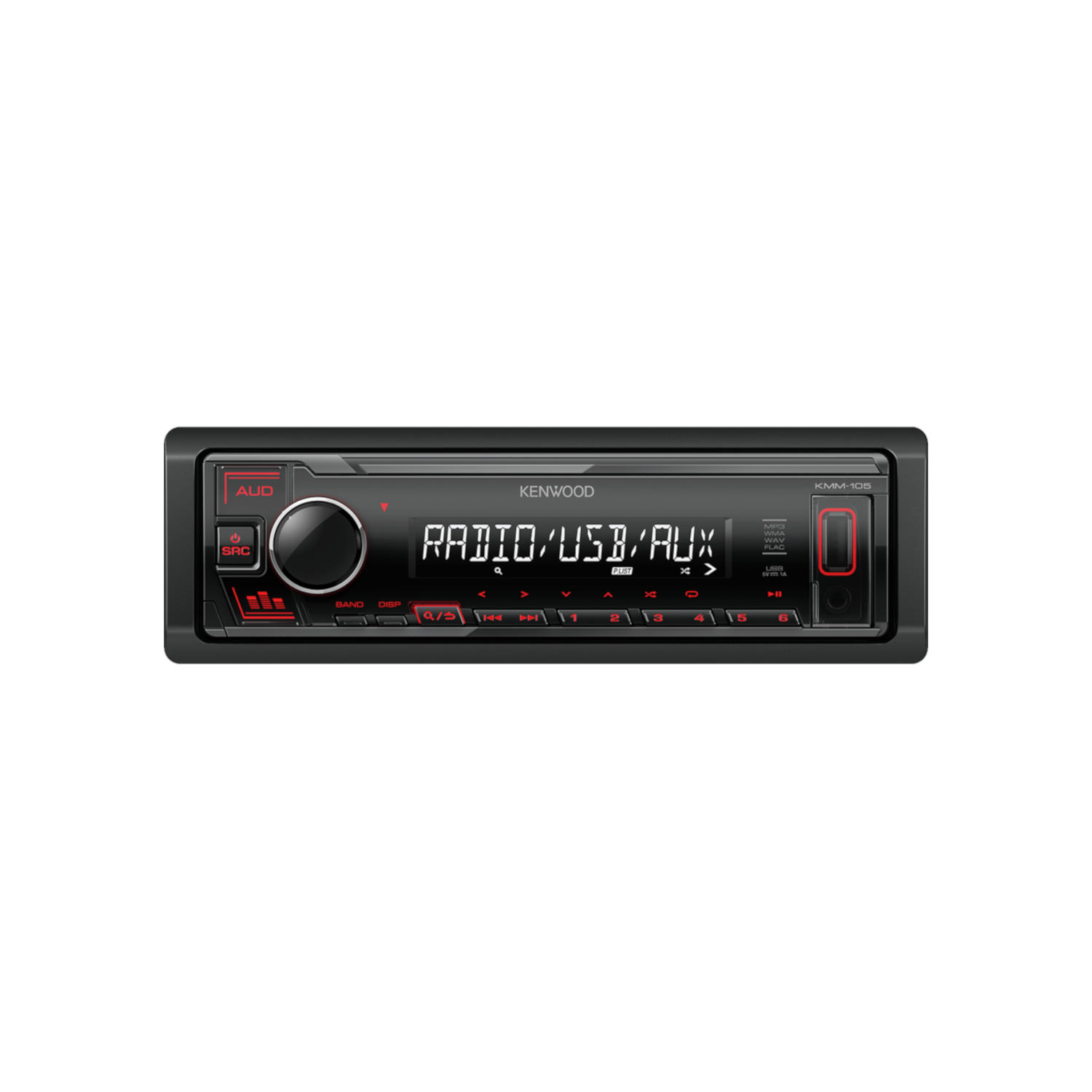

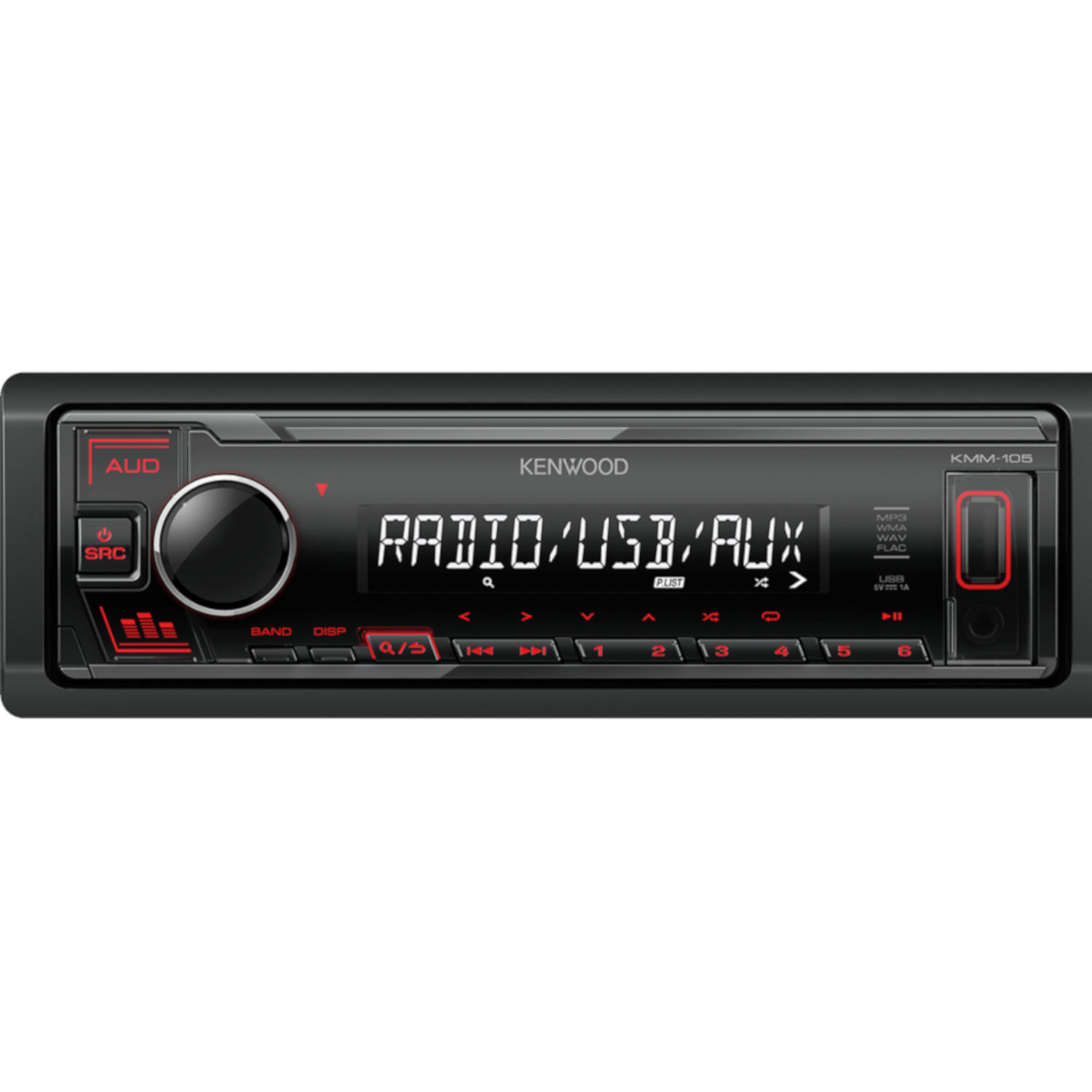

Kenwood KMM-105RY

General Features

• DIN Size: 1 DIN
• Detachable Faceplate: Yes
• Key Illumination: Red LED
• Rotary Encoder & Control Knob: Yes
• Dual Accent Key: Audio control & Easy EQ control
• Back-up Memory: Radio presets
• Attenuator with Smooth Volume Return: Yes
• Touch Sensor Tone: Yes
• Digital Clock (24H): Yes
• Clock display when power-off: default off
• All-off Select (20/40/60 minutes): Yes
• Built-in Connector: Mitsumi, 16 pin
• ISO connector: Yes, Mitsumi to ISO cable
• USB interface x 1: Yes, (Front)
• Firmware upgreadable: Yes
• Mechless receiver: Yes
• Short body: Yes

Display Features

• Display Type: Liquid Crystal Display (LCD)
• Display Layout: 13 Segments x 13 Digit
• Vertical Aligment Liquid Crystal Display: Yes
• Display Illumination: White (LED)
• Dimmer Control: Manual / Set by Timer
• Brightness control: 0 - 31 steps
• Demo Mode: Yes
• Menu text in selectable language: English(default) / Spanish / French / Russian

Cosmetics features

• Dress plate: Piano Black
• Preset key finish: Piano Black
• Escutcheon finish: Black Injection
• Volume & operation knob or wheel: Piano black with chrome finished ring
• Triangle Illumination: Red LED
• Front terminals dust cover: Yes
• Key illumination: Red LED
• Illuminated front USB port: Red LED
• Brightness Control (Key): 0 - 31 step
• Dimmer Control (Key): Manual / Set by Timer
• Brightness zone concept: 2 zone brightness control

Tuner Features

• Station Select: Manual / Preset
• FM Reception: Yes
• FM Stereo / Mono Selector: Yes
• AM (MW/LW) Reception: Yes
• Up/Down Seek/Scan: Yes
• Tuner Presets (FM/AM): 24 Presets (18FM / 6AM)
• Mixed preset memory (FM & AM): 6 presets
• Automatic Memory Entry (AME): Yes
• Tuner Preset Back-up Memory: Yes
• Radio Data System: Yes
• Radio Text Plus: Yes
• Traffic Information: Yes
• Local search: Yes
• AF Regional: Selectable AF/AF Reg/OFF
• Auto TP search: Yes
• Enhanced Other Networks Function (EON): Yes
• Program Type Function (PTY): Yes

USB Features

• USB terminal: Yes, Front with dust cover
• USB Type: 2.0 High speed
• MP3, WMA, WAV, FLAC playback: Yes
• Repeat/Scan/Random search: Yes
• Repeat / Random Play: Yes
• Direct search: Yes
• Last Position Memory / Resume: Yes
• Time code display: Yes
• 1A Charge Capability for Smartphone: Yes

Audio Features

• Maximum Output Power: 50W x 4
• MOSFET Power IC: Yes
• Auxiliary Type: Mini-jack, front panel
• Pre-out: 1 RCA
• Pre-out Output Level: 2.5V
• Preout Rear / Subwoofer Switchable: Yes
• Subwoofer Reference Level Adj: Yes
• Tone Control / Easy EQ: 3-Band, 8 Presets
• Balance/Fader/Loudness Control: Yes
• Bass Boost Circuit: Off/+1/+2/+3/+4/+5
• Att.(-20dB) with smooth Volume Return: Yes
• Parametric Equalizer + Presets: 3-Bands Parametric Equalizer with 8 Presets.
• Low-pass Filter: Yes
• Speaker Size Control: Yes, Off / 5" or 4" / 6*9" or 6" / OEM
• Kenwood Sound Reconstruction: Yes
• Drive EQ: Yes

Connectivity

• Front USB & AUX Input: Yes
• DC-Cord: Mitsumi to ISO
• Power Control (P.CON) wire: Yes
• Amplifier pre-out 1 RCA: Rear/Subwoofer (selectable)
• FM Antenna Input: JASO connector
• OEM Wired Remote Control ready: Yes

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step): Yes
• FM Usable Sensitivity: 0.71μV/75ohm (S/N 30dBf)
• FM Quieting Sensitivity : 2μV/75ohm (S/N 46dBf)
• FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono): 64dB
• FM Stereo Separation (1kHz): 40dB
• MW range: 531kHz - 1611kHz (9kHz step): Yes
• MW Usable Sensitivity: 28.2μV
• LW range: 153kHz - 279kHz (9kHz step): Yes
• LW Usable Sensitivity: 50μV

Codec Specs

• MP3 Format: MPEG 1/2 Audio Layer 3-Files
• WMA Format: in accordance with Windows Media Audio
• WAV Format: RIFF waveform Audio Format (only for LinearPCM)
• FLAC Format: FLAC files (up to 96kHz/24bit)

USB Specifications

• USB Version compatibility: USB 1.1/2.0 full speed
• File System: FAT 32/16/12
• Maximum Supply current: 1500mA
• D/A Converter: 24bit
• MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode: Compliant with Windows Media Audio
• WAV Decode: Linear - PCM Files
• flac Decode: FLAC files up to 48kHz/16bit

Audio Specifications

• Maximum Power: 50 W x 4
• Output Power (DIN45324,+B=14.4v): 22 W x 4
• Preout Level: 2500 mV / 10 kOhm,
• Preout Impedance: ≤ 600 Ohm
• Speaker Impedance: 4 Ohm ~ 8 Ohm
• AUX Frequency Response: 20 Hz ~ 20 kHz (±1dB)
• AUX Maximum Input Voltage: 1000 mV
• AUX Input Impedance: 30 kOhm
• Bass Tone Control: 100 Hz ±8 dB
• Middle Tone Control: 1 kHz ±8 dB
• Treble Tone Control: 12.5 kHz ±8 dB
• Low Pass Filter Frequency (Hz): Through/85/120/160Hz
• Subwoofer Level (dB): -15 dB to +15dB

Accessories

• Release keys: 2 pieces
• Escutcheon: Yes
• Installation Sleeve: Yes
• DC cord (Mitsumi to ISO): 15 cm

General Specifications

• Operating voltage: 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption: 10A
• Dark Current Consumption: Below 1mA
• Dimensions (WxHxD): 182 x 53 x 100mm
• Weight: 600 gr.
• Operation Temperature Range: -10°C ~ 60°C
• Instruction Manuals: Multi-language quick Guide
